1pcs Cabinet Mini Thermostat KTO011 KTS011 ZRO011 Normally Open/Normally Closed Compact Mechanical Temperature Controller(KTS011)

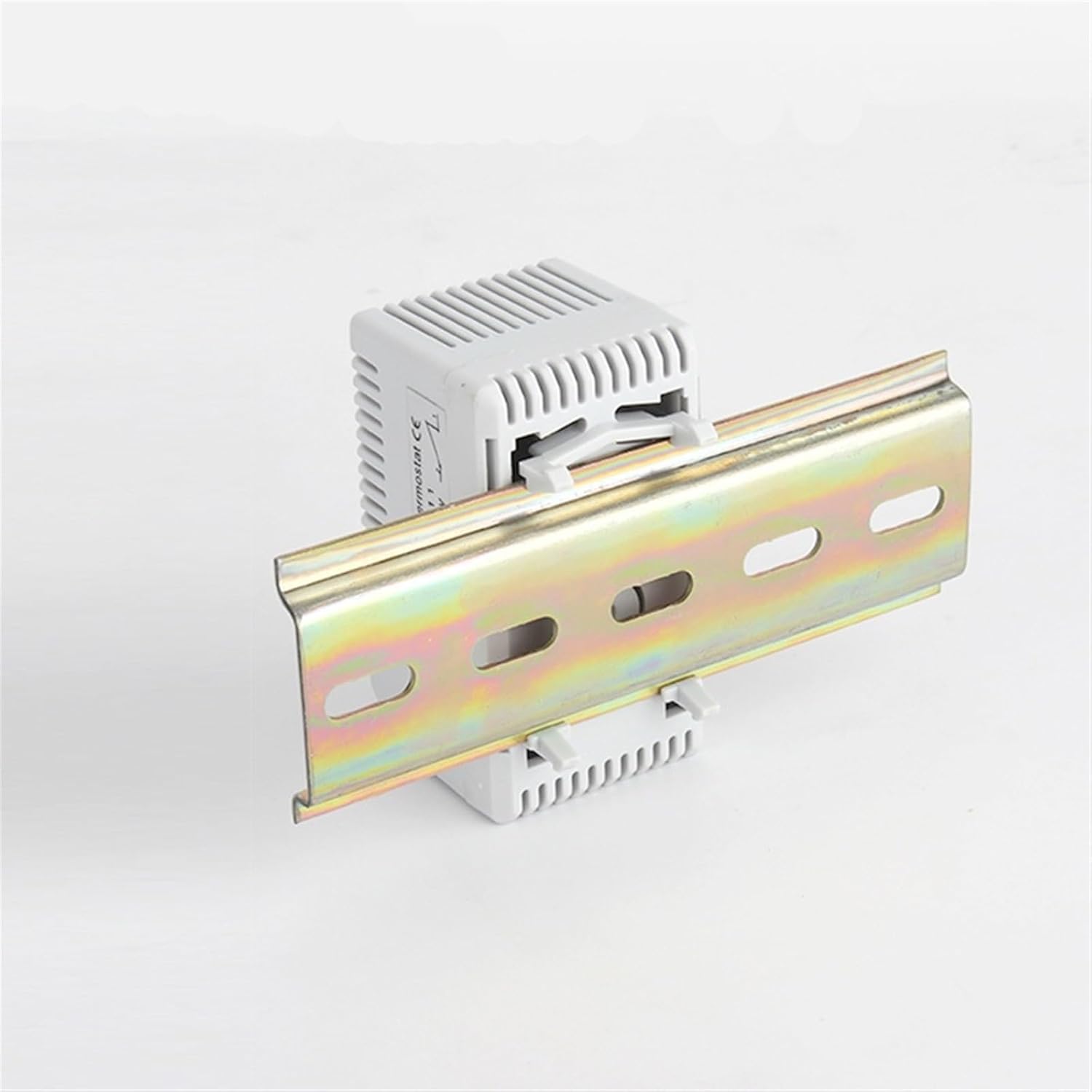

Thermostat ControllersProduct DescriptionSwitch temperature difference: 7K (± 4K tolerance)Sensor element:Thermostatic bimetalContact type:snap-action contactService life:> 100,000 cyclesConnection:2-pole terminal, clamping 0.5Nm max.: rigid wire 2.5mmâ2; stranded wire (with wire end ferrule) 1.5mmâ2Mounting:clip for 35mm DIN rail, EN60715 (or for exit filter EF 118 Series)Casing:plastic according to UL94 V-0, light greyOperating / Storage temperature:-45 to +80°C (-49 to +176°F)Operating / Storage humidity:max. 90 % RH (non-condensing)Protection type:IP20Features:The shell of our thermostat is made of plastic material with fine workmanship, environmental-friendly, safe, to use.Its temperature controlling range is from 0° to 60°, perfect for using to control heater, filter fan, cooling equipment and other signal device in your home, market and so on.It has a large data scale and an adjustable button is for easy and convenient to adjust the controlling temperature, and the button color(red/blue) of thermostat could be choose for you.Adopting standard rail clip design, 4 feet holders, easy to install and disassemble.Circuit interfaces in the bottom of thermostat can make wire connection become more sturdy and safer.
