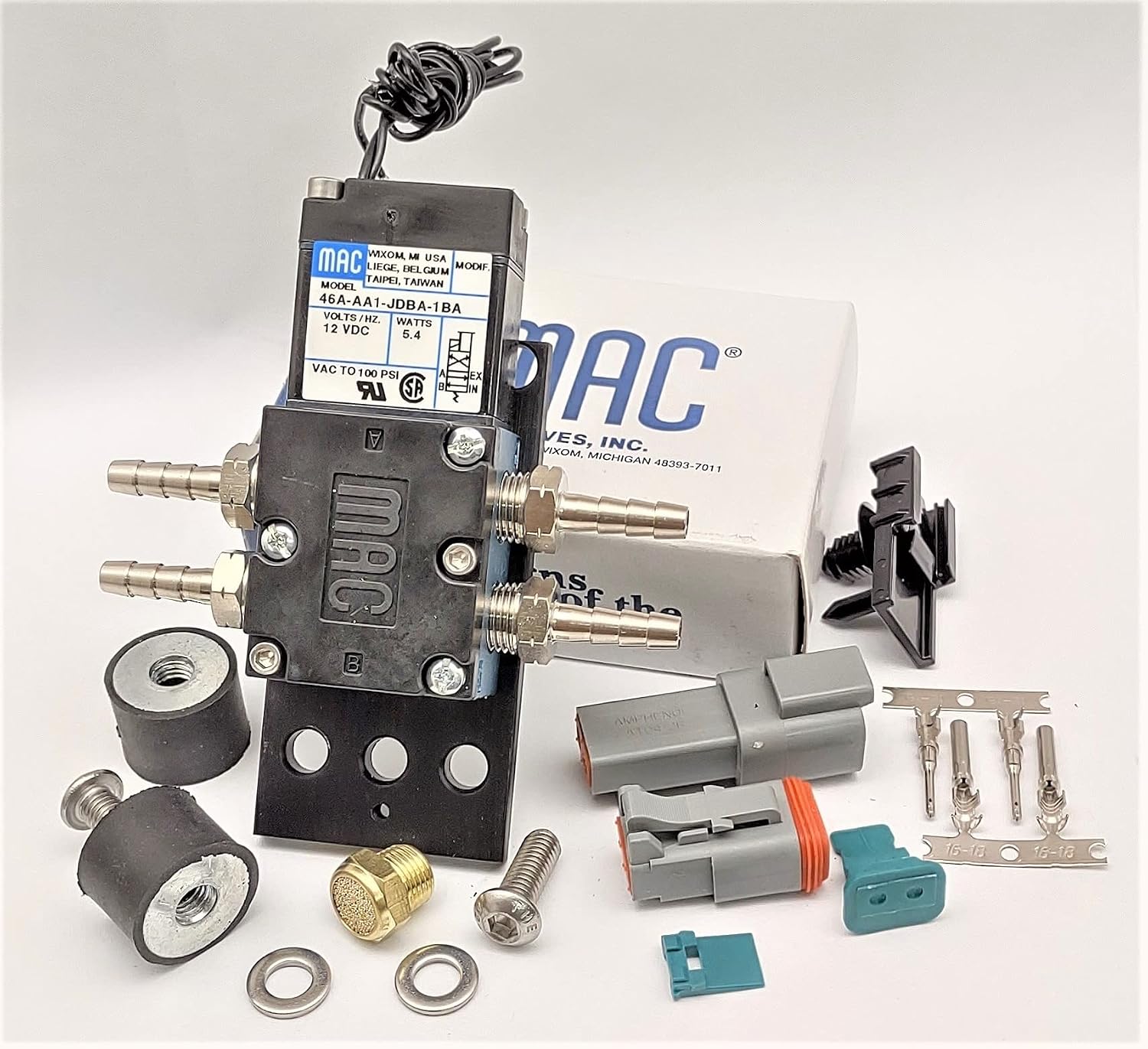

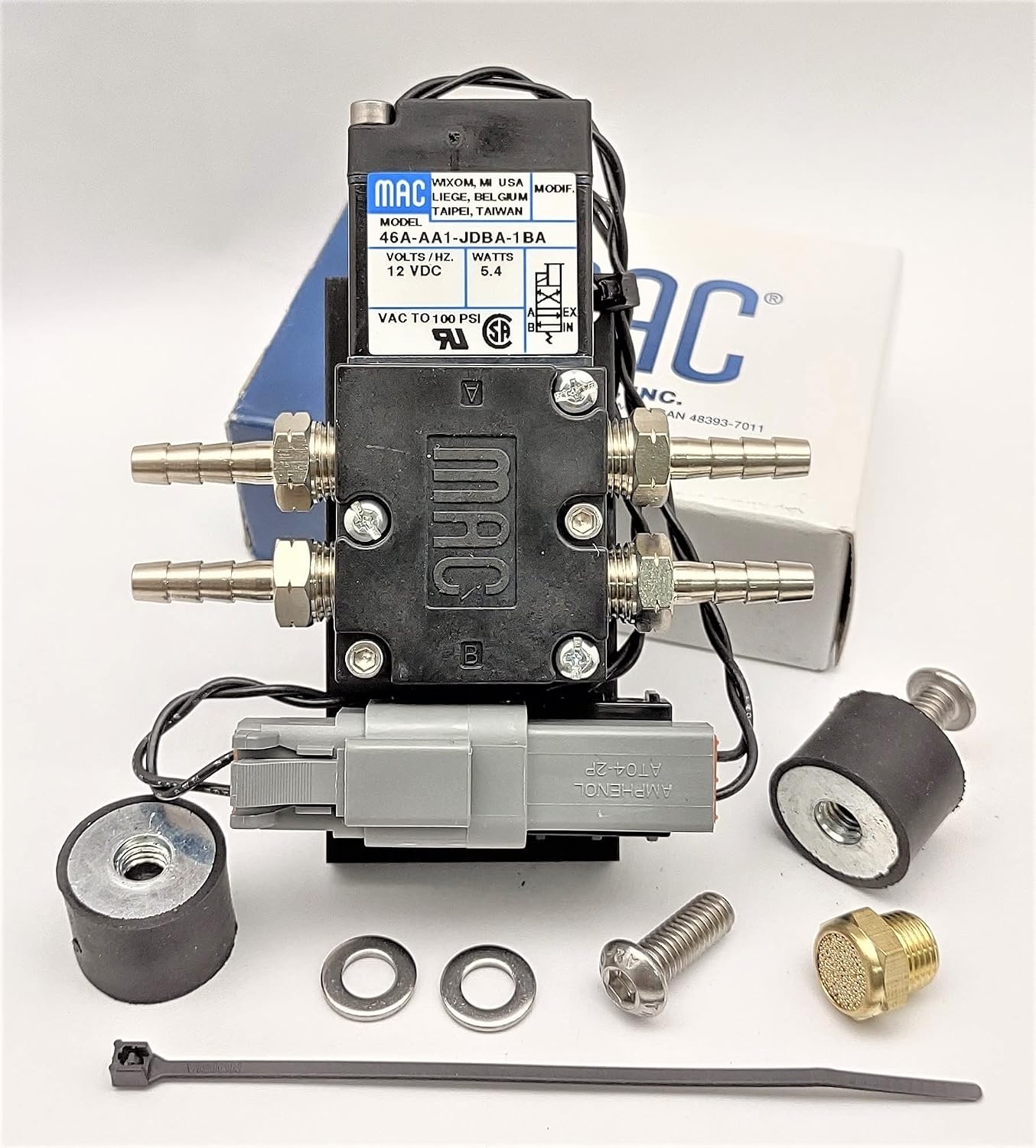

Circuit Se7en AMP/Deutsch Vibration Bracket GENUINE MAC 4 port solenoid Boost valve 46A-AA1-JDBA-1BA
$74.07
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.elize.co.in
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$74.07
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.elize.co.in
Free 30-day returns Details
Product details
| Management number | 221431481 | Release Date | 2026/05/03 | List Price | $29.63 | Model Number | 221431481 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Coil Voltage: 12 V-DC Port Size: 1/8 IN Frequency range 10-20Hz. . Note: The valve will be marked/identified in some way to ensure that it was sourced from Circuit Se7en and is a genuine MAC valve.
- GENUINE MAC valve
- Integrated elec connector mount with strain relief points.
- Very High quality Amphenol/Deutsch waterproof electrical connector. Requires soldering or special crimp tool. We also have a non waterproof very easy listing that has a quick connector, for those without the means to install the Amphenol type (this listing)
- Hard anodized 6061 Aluminum CNC bracket made in the USA. NOT plastic!
- Non tabbed (no cantilever) provides more secure mounting ,more compact, less possibility of vibration.
- M6-M6 female threaded rubber vibration isolators stainless fasteners. Isolators' flexibility allow mounting to mildly non-planar surfaces like the engine bay side of wheel wells.
- You will receive 4x nickel plated brass barbs 1x sintered vent UNassembled AMphenol connector with black clip. 2x screws to mount valve to bracket, 2x flat head screws to mount bracket to isolators, 2x screw& washer to mount isolator to chassis
| Size | 1.5 x 3 x 1 inches |
|---|---|
| Brand Name | CIRCUIT SE7EN |
| Unit Count | 1.0 Count |
| Valve Type | Multi Port Valve |
| Thread Size | 1/8 inch |
| Thread Type | NPT |
| Manufacturer | CIRCUIT SE7EN |
| Model Number | C7 BLK MCUB 46 Amp |
| Material Type | Aluminum |
| Connector Type | Amphenol/Deutsch |
| Item Type Name | Boost Solenoid Valve |
| Exterior Finish | HARD BLACK ANODIZE |
| Item Dimensions | 3 x 1.5 x 1 inches |
| Number of Ports | 4 |
| Maximum Pressure | 120 Pound per Square Inch |
| Specification Met | 12 V-DC, MAC |
| Included Components | 1 sintered breather vent, 4x nickel plated straight brass barbs foto fit 3/16" (4mm) I.D hose, Genuine Amphenol Brand 2 pole connector, Genuine MAC valve 46A-AA1-JDBA-1BA, 4 port, black bracket, 2x valve to bracket mounting screws,2x M6 flat head screws,2x rubber Isolators, 2x m6 washers,2x M6x16mm screws to mount isolators to chassis etc |
| Inlet Connection Type | threaded |
| Outlet Connection Size | 0.13 Inches |
| Outlet Connection Type | threaded |
| Manufacturer Part Number | C7 BLK MCUB 46 Amp |
