[Upgraded] AURSINC NanoVNA-H Vector Network Analyzer 10KHz-1.5GHz Latest HW Version 3.7 Antenna Analyzer Ham Radio, with USB C & USB 3.0 OTG SD Card Reader and 32GB SD Card

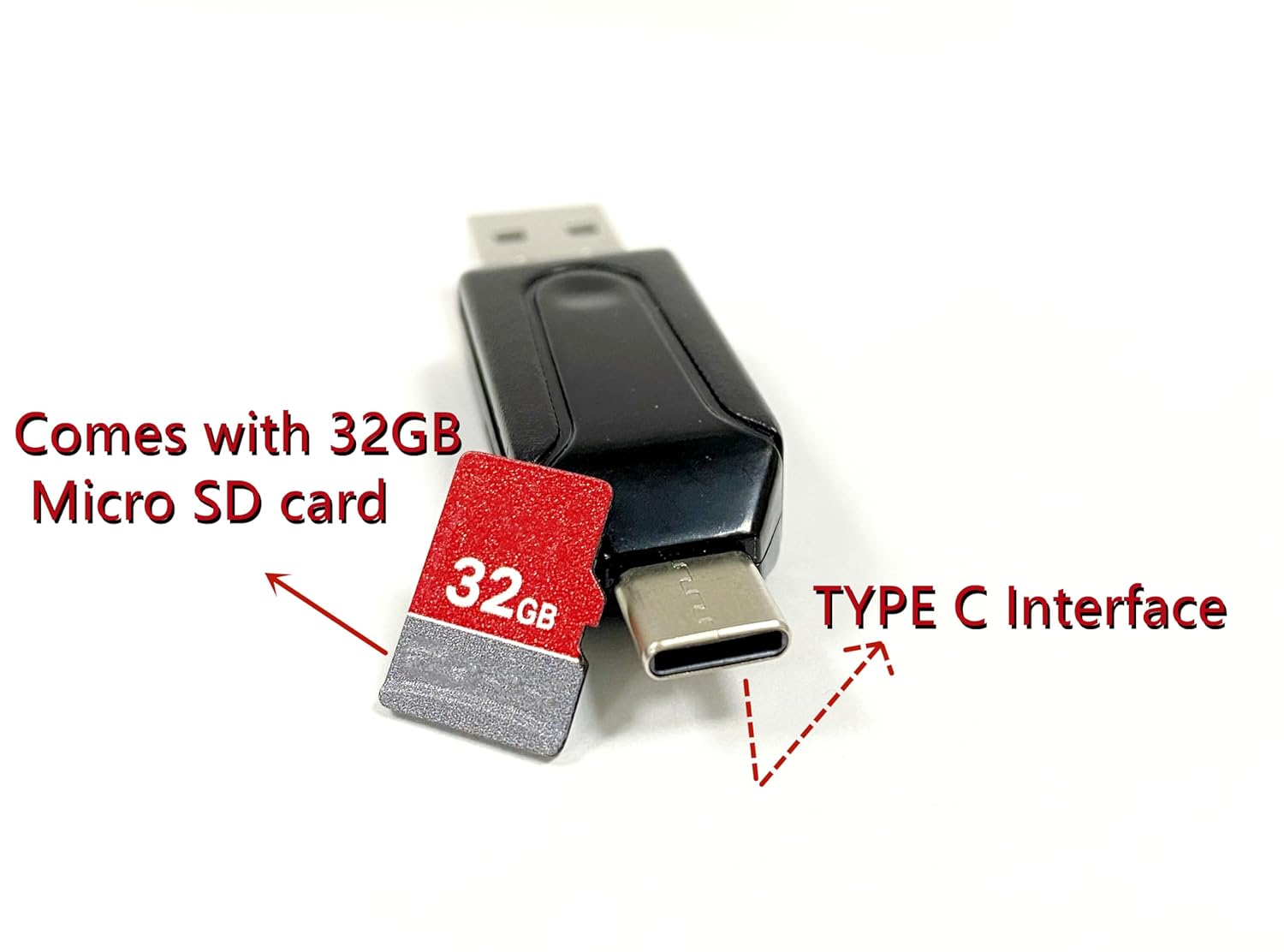

[Upgraded] AURSINC NanoVNA-H Vector Network Analyzer 10KHz -1.5GHz + USB C & USB 3.0 OTG SD Card Reader and 32GB SD Card

• [UPGRADED HW V3.6] NEW HW VERSION V3.7. Added battery circuit management, more secure. Redesigned PCB, you could connect to mobile phone with Type C-Type C cable (original PCB needs OTG cable), see a clear HD image. Added a case, which is protective and dust-proof. Disply: 2.8 inch TFT (320 x240)
• [IMPROVED FREQUENCY ALGORITHM] The improved frequency algorithm can use the odd harmonic extension of si5351 to support the measurement frequency up to 1.5GHz. The 50K-300MHz frequency range of the si5351 direct output provides better than 70dB dynamic, The extended 300M-900MHz band provides better than 60dB of dynamics, and the 900M-1.5GHz band is better than 40dB of dynamics
• [STRONG AND SECURE POWER SUPPLY] This Vector Network Analyzer is battery powered or USB powered. Built in 650mAh battery, could work for 2 hours continuously, if need extra working time, it can be connected to power bank or power source
• [MULTIPLE FUNCTIONS] The default firmware main function is used for antenna performance measurement. The TX/RX method can measure the complete S11 and S21 parameters. If you need to obtain S12 and S22, you need to manually replace the transceiver port wiring. Designed a practical and simple control application on PC, you can download touchstone(SNP) files for radio design and simulation software
• [PACKAGE LIST] 1x NanoVNA H host(2.8inch touchscreen, 650mAh), 2x 30cm SMA male to male RG174 RF cable, 1x USB Type-C data cable, 4pcs SMA simple calibration kit (open/short/load/ SMA female to female connector), 1x USB TypeC-TypeC Line, 1x Touch plectrum, 1x Stylus pen. NOTE: Our nanovna is only compatible with low-speed and supports SPI mode SD card for now
