Weewooday 10 Pieces Am312 Pir Sensor Mini Pir Motion Sensor Infrared Human Body Pyroelectric Infrared Motion Module 2.7v to 12v

Features: The trigger mode of these mini human sensor modules: After high sensing output, during the delay time, if a human body is active within its sensing range, its output will keep high until the delay after the people leaves, then it will become low. The human sensor module will prolong a delay time cycle automatically after detecting every activity of the human body, and the time of the next activity is applied as the starting point for the delay time. Specifications: Product model: AM312Working voltage: direct current 2.7V - 12VStatic power consumption: <0.1mADelay time: 2 secondsBlocking time: 2 secondsTrigger mode: repeatableSensing range: less than or equal to 100 degrees cone angle, 3 - 5 m (depend on the specific lens)Working temperature: -20 degrees Celsius to +60 degrees CelsiusPCB size: approx. 10 x 8 mm/ 0.39 x 0.31 inchTotal size: approx. 25 x 12 x 12 mm/ 0.98 x 0.47 x 0.47 inchPackage includes: 10 x Mini human sensor modulesNotes: Please keep away from little kids. Manual measurement, please allow slight errors on size.

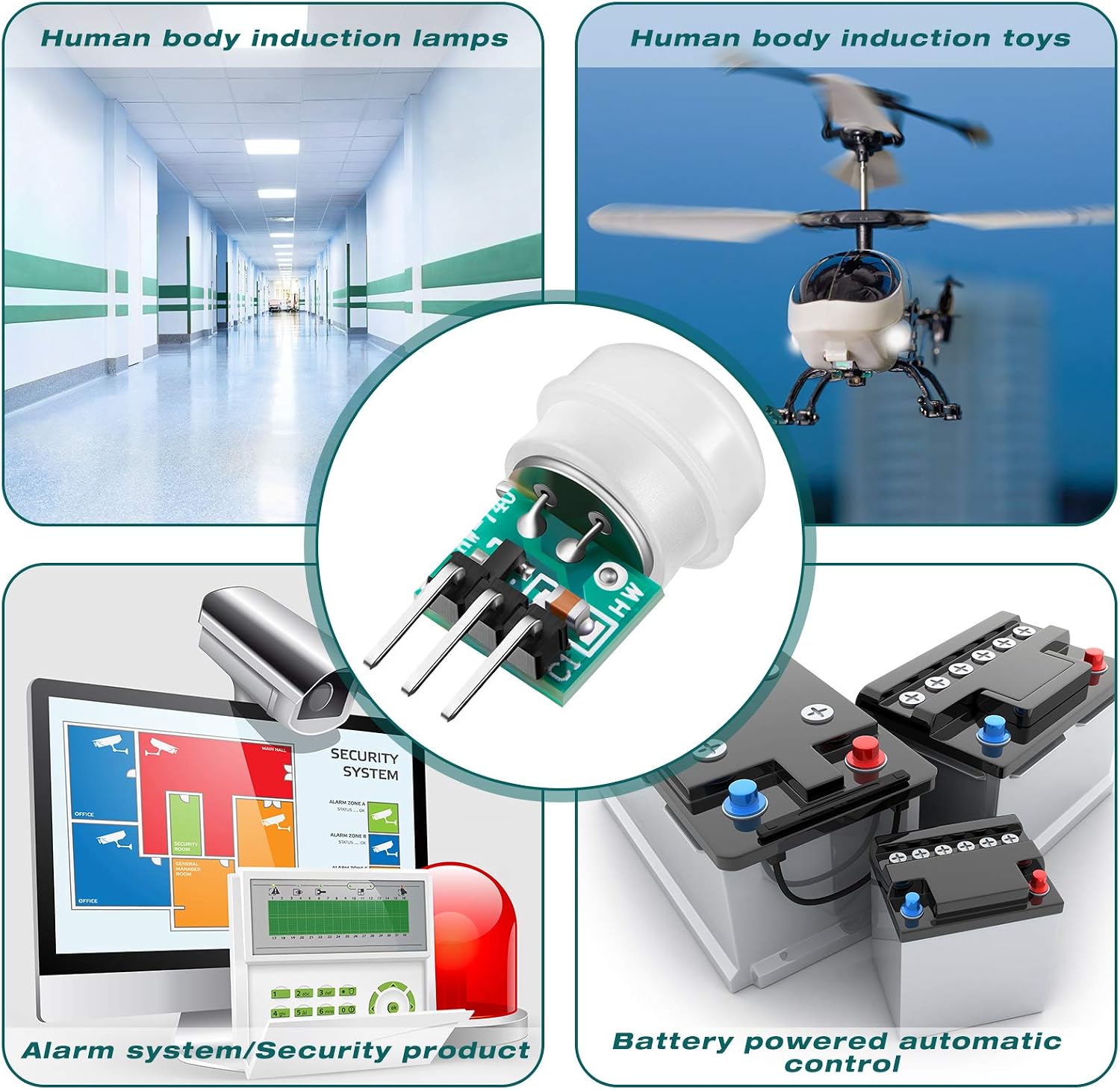

• High sensitivity: the AM312 human sensor module is a digital intelligent automatic control product that is based on passive body infrared technology, which is highly sensitive and reliable to use, they are widely applied for all kinds of automatic induction electrical equipment
• Nice performance: these human sensor modules are small in size, and feature low power consumption and nicely anti-interference, with internal digital signal processing and direct high and low level output
• Repeatable trigger mode: after high sensing output, during the delay time, if a human body is active within its sensing range, its output will keep high until the delay after the people leaves, then it will become low
• Specific parameters: Working voltage: DC 2.7V - 12V; Static power consumption: <0.1mA; Delay time: 2 seconds, blocking time: 2 seconds; Trigger mode: repeatable; Sensing range: less than or equal to 100 degrees cone angle, 3 - 5 m (depend on the specific lens); Working temperature: -20 degrees Celsius to +60 degrees Celsius
• What you will receive: there are 10 pieces of PIR motion sensor detector modules in the package, enough quantity to meet your daily needs
